Upon purchasing this product, our customer care team will contact you to discuss the following requirements:

  • Is the Zip unit onsite?
  • Sufficient Power Supply - 1 x 10 amp (within 1 metre of the installation location)
  • Water available to unit
  • Is stone bench cutting required?
  • Will your Zip unit be installed over a font or sink?
  • Sufficient space available in cabinetry - available in the product install guide

Confirm

Click to Zoom

Request A Quote
Finish

View our range of finishes for this product.

This product is not available for online sale. Please contact Zip for more information.

Boiling
Cold
Filtered
H55708Z00UK

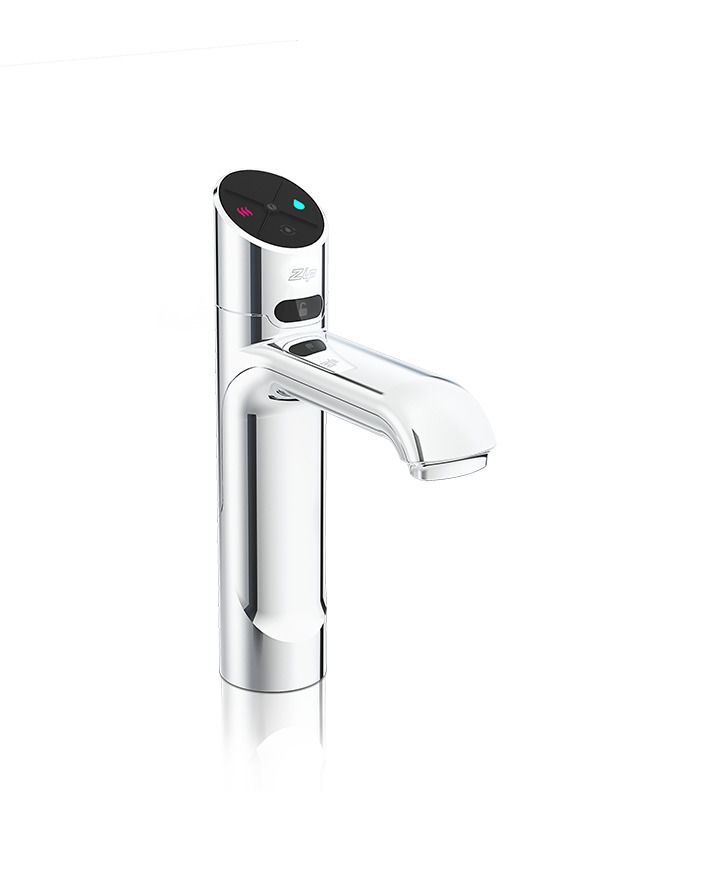

Get instant filtered boiling and ambient tap water for your office or workplace from the Zip Water HydroTap Classic Plus in bright chrome.

Manufacturing Code
H55708Z00UK
Capacity
Commercial
Number of people
60
Boiling Cups per hour
160

Product Details

The world's most advanced drinking water system, the HydroTap Classic Plus delivers a choice of instant filtered boiling and ambient water for workplaces of all sizes. From a single tap and under counter command centre, the Classic Plus dispenses only the purest tasting water, filtered to a market-leading 0.2 micron - 25 times more effective than a standard water filter jug. To prioritise user safety, the HydroTap doesn't splash or spit when dispensing water, and features two boiling water safety modes and a cool to touch tap. What's more, the HydroTap features superior technology to conserve water while saving energy and time.

Specifications

Tap
HydroTap Classic Plus bright chrome
Water Pressure
Min 1.7 bar - Max 5 bar
Water Connection
1/2" BSP
Water Supply Requirements
Cold
Water Valves
Integrated dual check valve
Power Rating
1.8kW 230v 50/60 Hz
Power Supply
1 x 13 amp
Dimensions
W280mm x D313mm x H333mm
Product Approvals
CE, UKCA
Warranty
Appliance warranty 24 months plus additional 36 months boiling tank warranty

Manuals

  • Quick Guide
  • Tap Operation Label
  • Instruction Manual
  • User Manual
  • Additional Information

Brochures

  • Product Brochure

Installation

Installation Requirements

'1. Installation and connection of your Zip HydroTap must be carried out by a qualified person, observing national and local regulations.2. You will require suitable mains electrical and drinking water connections, plus waste water drainage all within 1 metre of the product.3. HydroTap is air-cooled so discrete cabinetry cut-outs are required for ventilation.4. Installation on most bench tops is straightforward however some stone bench tops may require a specialised cutting service.5. If you live in a hard water area, we recommend installation of a Zip scale filtration kit.6. Installation by Zip Professional Service can be arranged with a phone call or through www.zipindustries.co.uk'

Certifications

CE Image
UKCA Mark

BIM Files

  • AutoCAD Plan
  • Revit Virtual Showroom Project File
