HydroTap G5 Touch Free Wave boiling chilled sparkling 100/75

Confirm Purchase


Do you own an uninstalled HydroTap?

Yes No

Confirm Purchase


Please purchase a HydroTap first

Ok

Confirm Purchase


Upon purchasing this product, our customer care team will contact you to discuss the following requirements:

  • Is the Zip unit onsite?
  • Sufficient Power Supply - 1 x 10 amp (within 1 metre of the installation location)
  • Water available to unit
  • Is stone bench cutting required?
  • Will your Zip unit be installed over a font or sink?
  • Sufficient space available in cabinetry - available in the product install guide

Confirm

Click to Zoom

Request A Quote
Finish

View our range of finishes for this product.

This product is not available for online sale. Please contact Zip for more information.

Boiling
Chilled
Sparkling
Filtered
H5W760Z00UK

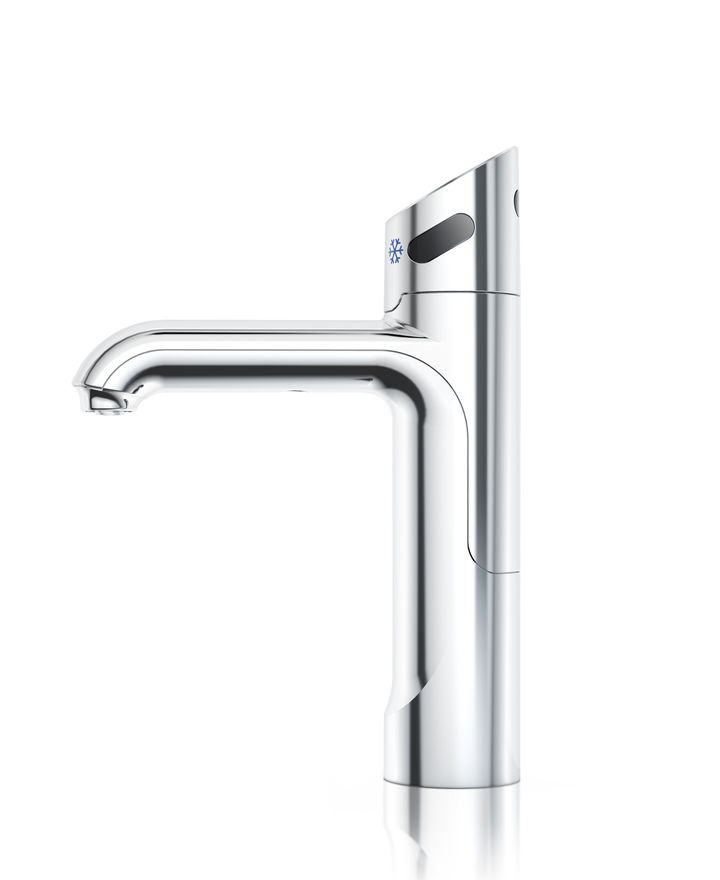

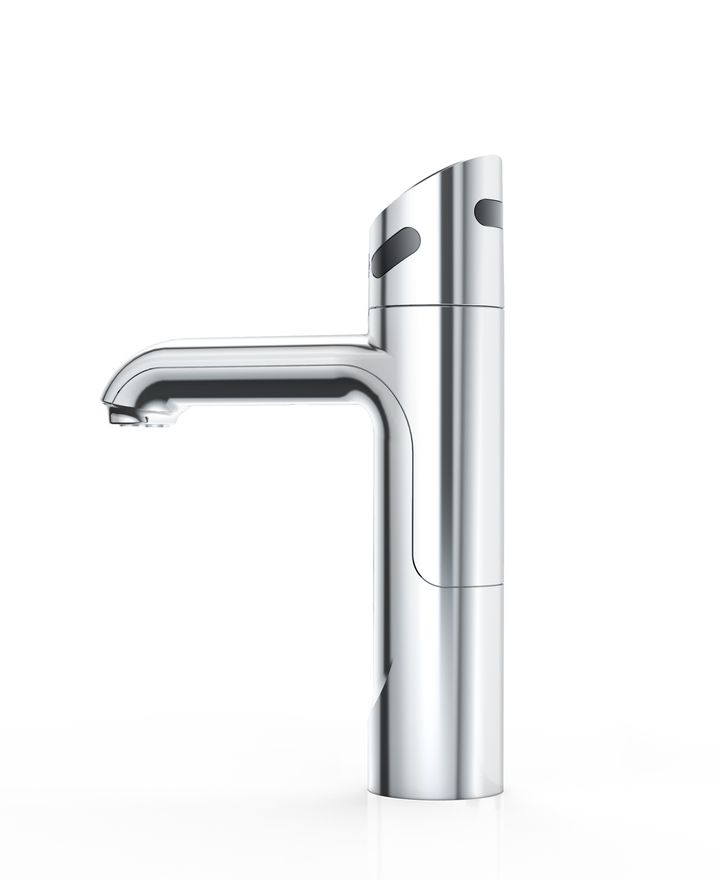

The Zip Water HydroTap Touch Free Wave in bright chrome provides instant filtered boiling, chilled and sparkling tap water for your office or workplace.

Manufacturing Code
H5W760Z00UK
Capacity
Commercial
Number of people
1-20
Boiling Cups per hour
100
Chilled Cups per hour
75
Chilled Litres per hour
75
Combined Chilled and Sparkling Cups per hour
75
Combined Chilled and Sparkling Litres per hour
75

Product Details

With an increased consideration around hygiene in the workplace, the new Zip HydroTap Touch Free Wave uses smart infrared sensors to provide a 100% touch-free, safe to use solution for workplaces to access instant boiling, chilled and sparkling drinking water with a simple wave of the hand. A reliable solution for a range of locations, the tap boasts a number of safety features to prevent the accidental dispense of water. Like all our other HydroTaps, the Touch Free Wave offers cutting-edge technology to conserve water, energy and time, with market-leading 0.2 micron filtration – 25 times more effective than a standard water filter jug.

Specifications

Tap
HydroTap Touch Free Wave bright chrome
Water Pressure
Min 2.5 bar - Max 5 bar
Water Connection
1/2" BSP
Water Supply Requirements
Cold
Water Valves
Integrated dual check valve
Power Rating
1.96kW 230v 50/60 Hz
Power Supply
1 x 13 amp
Dimensions
W339mm x D483mm x H333mm
Product Approvals
CE, UKCA
Warranty
Appliance warranty 24 months plus additional 36 months boiling tank warranty

Manuals

  • Quick Guide
  • Tap Operation Label
  • Instruction Manual
  • User Manual
  • Additional Information

Brochures

  • Product Brochure

Installation

Installation Requirements

1. Installation and connection of your Zip HydroChill must be carried out by a qualified person, observing national and local regulations.2. You will require suitable mains electrical and drinking water connections within 1 metre of the product.3. Discrete cabinetry cut-outs are required for ventilation.4. Installation for HydroChill 50 on most bench tops is straightforward, however some stone bench tops may require a specialised cutting service.5. Installation by Zip Professional Service can be arranged with a phone call or through www.zipwater.co.uk

Certifications

CE Image
UKCA Mark

BIM Files

  • AutoCAD Plan
  • Revit Product File
  • Revit Virtual Showroom Project File
  • IFC
